Marr 833P Non Stock
  1. pin-int

Marr 833P

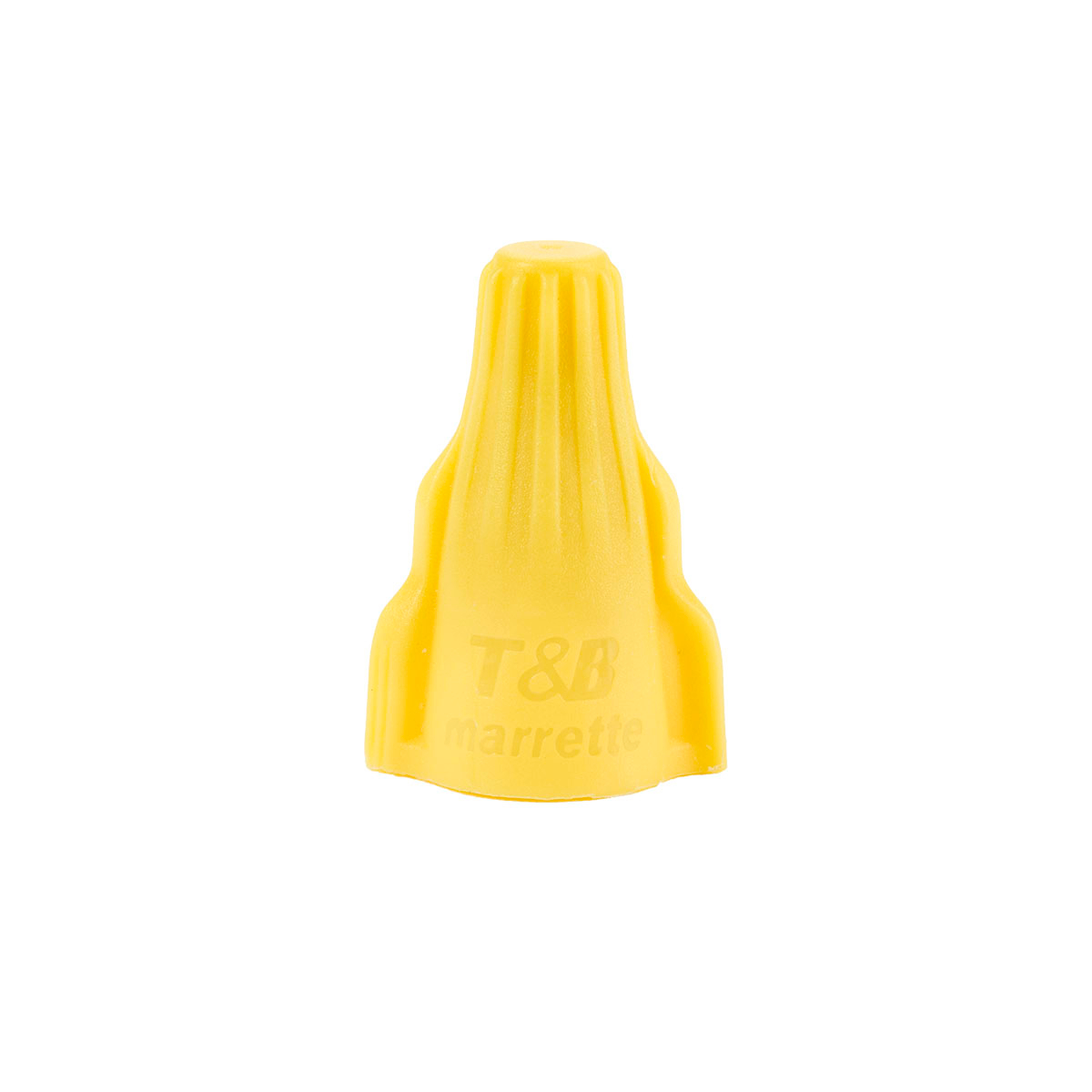

833P Wide Range Twist-On Wire Connector, Ergonomic Winged Shell, Live Action Spring, 22 to 8 AWG Solid/Stranded/Copper Wire, Polypropylene

  • MPN: 833P
  • UPC: 067396014851
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading loading
Marr 833P

Marrette® invented the pressure wire connector in 1914 and remains the class of the field and the standard by which all pressure wire connectors are judged.

Marrette® Twist-On Wire Connector, Wide Range, Ergonomic Winged, Live Action, Solid Copper/Stranded Wire, 22 to 8 AWG Wire, 600 VAC, 221 deg F, Polypropylene, Yellow

Color      :      Yellow
Temperature Rating      :      221 deg F
Type      :      Wide Range
Voltage Rating      :      600 VAC
Shell Style      :      Ergonomic Winged
Spring Type      :      Live Action
Wire Type      :      Solid Copper/Stranded
Wire Size      :      22 to 8 AWG
Material      :      Polypropylene
  • Deep, wide throat ensures full insulation coverage
  • No pre-twisting required
  • Exclusive live action variable volume spring expands to accommodate even more wires with less twisting effort, compared to other wide range wire connectors
  • Ergonomic wing shape allows excellent torque grip for your fingers as well as the option to use a standard 1/2 in or 13mm hex driver to help twist the Marrette®
  • Ergonomic wing design gives you a comfortable grip and more torque than the competition and the ergonomic shape reduces finger fatigue from repetitive installations
  • Made of tough durable polypropylene to withstand high installation pressures and unique copper coated spring helps resist corrosion
  • Posi-Grip® surface
  • Highly visible yellow color indicative of a secure connection for residential applications
  • Square wire spring construction and funnel design gives a positive pressure conductor grip for solid or stranded wires
  • 1000 VAC rated for lighting fixtures and signs
  • (2) 22 AWG, (1) 20 AWG to (3) 10 AWG wire combinations
  • pdfCatalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_5877afb63928f8e21e222fb5ea3600d3be7a87e0c842d50a810917ca1ced07f2.pdf

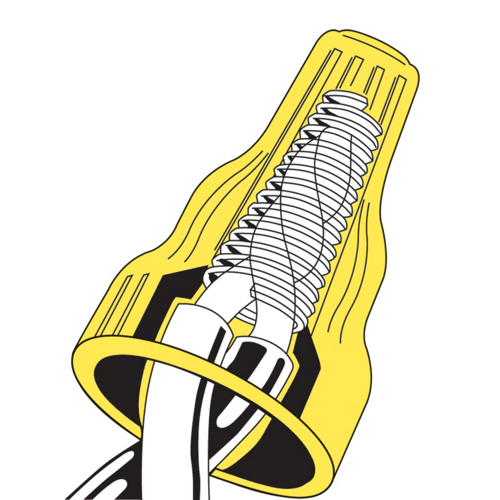

  • linkLine Drawing https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_c43b1a0e06d75772e5344646ba72a81fc3480cd0252541cc6090a8c227a7b430.jpg
  • pdfSpecification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_6d3d23b717f47187bbe5c49bc814a4785f902be80c9a61ce99f1bc87fa27c812.pdf
