Centium ICN2TTP40SC35M

ICN2TTP40SC35M Electronic Small Can Ballast, IntelliVolt® CENTIUM SmartMate CFL/Long Twin Tube/Parallel Lamp, 40 W Lamp, 120 to 277 VAC, Instant, 0.88 Ballast Factor

  • MPN: ICN2TTP40SC35M
  • UPC: 781087065358
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading loading
Centium ICN2TTP40SC35M

Offering maximum versatility, the Philips advance family of SmartMate ballasts for 4-pin compact fluorescent lamps drive a broad range of quad and triple-tube, circline, 2D, and long twin-tube Lamps. SmartMate ballasts' energy efficient design, compact and Lightweight housing, and user friendly features make These ballasts an ideal choice for fixture manufacturers, retrofitters, and MRO replacement..

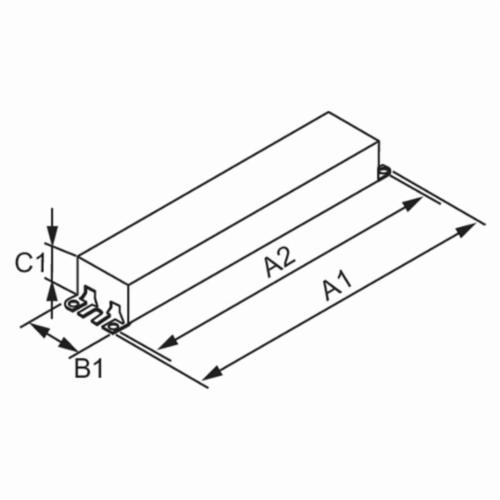

CENTIUM Electronic Fluorescent Ballast, FT40W/2G11 Lamp, 40 W Lamp, 68/67 W Wattage, 120 to 277 VAC, 0.25 to 0.57 A, 50/60 Hz Frequency, Instant Start, Total Harmonic Distortion: 0.1 %, Power Factor: 0.98, 2 Lamps, Ballast Factor: 0.88, 70 deg C, Metal, 9.5 in L x 1.7 in W x 1.18 in H Dimensions

  • Solid wire type
  • 18 AWG wire gauge
  • Automatic restart
  • 1.7 lamp current crest factor
  • 0.5/0.375 mm wire strip length
  • 0.1 sec ignition time

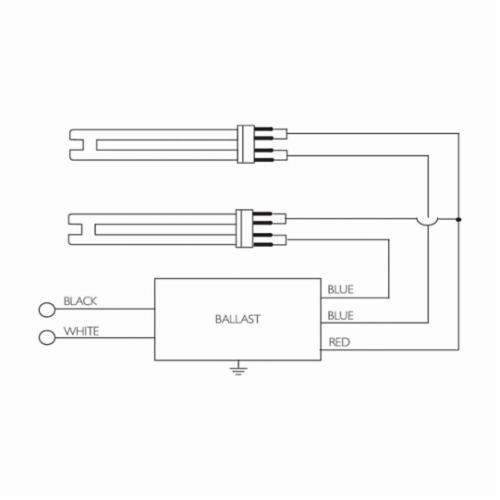

  • Parallel lamp connection
  • Remote, tandem, through allowed wiring configuration
