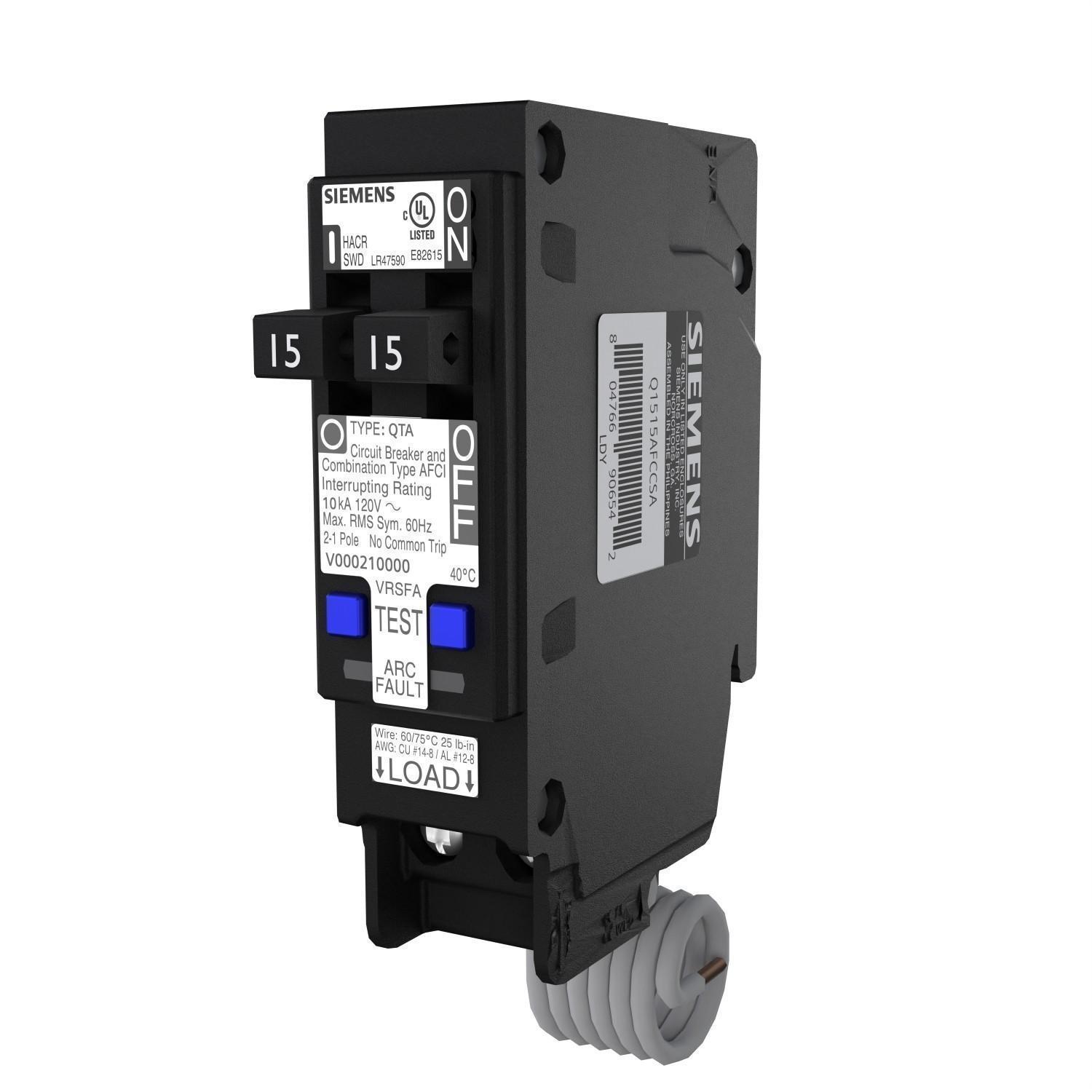

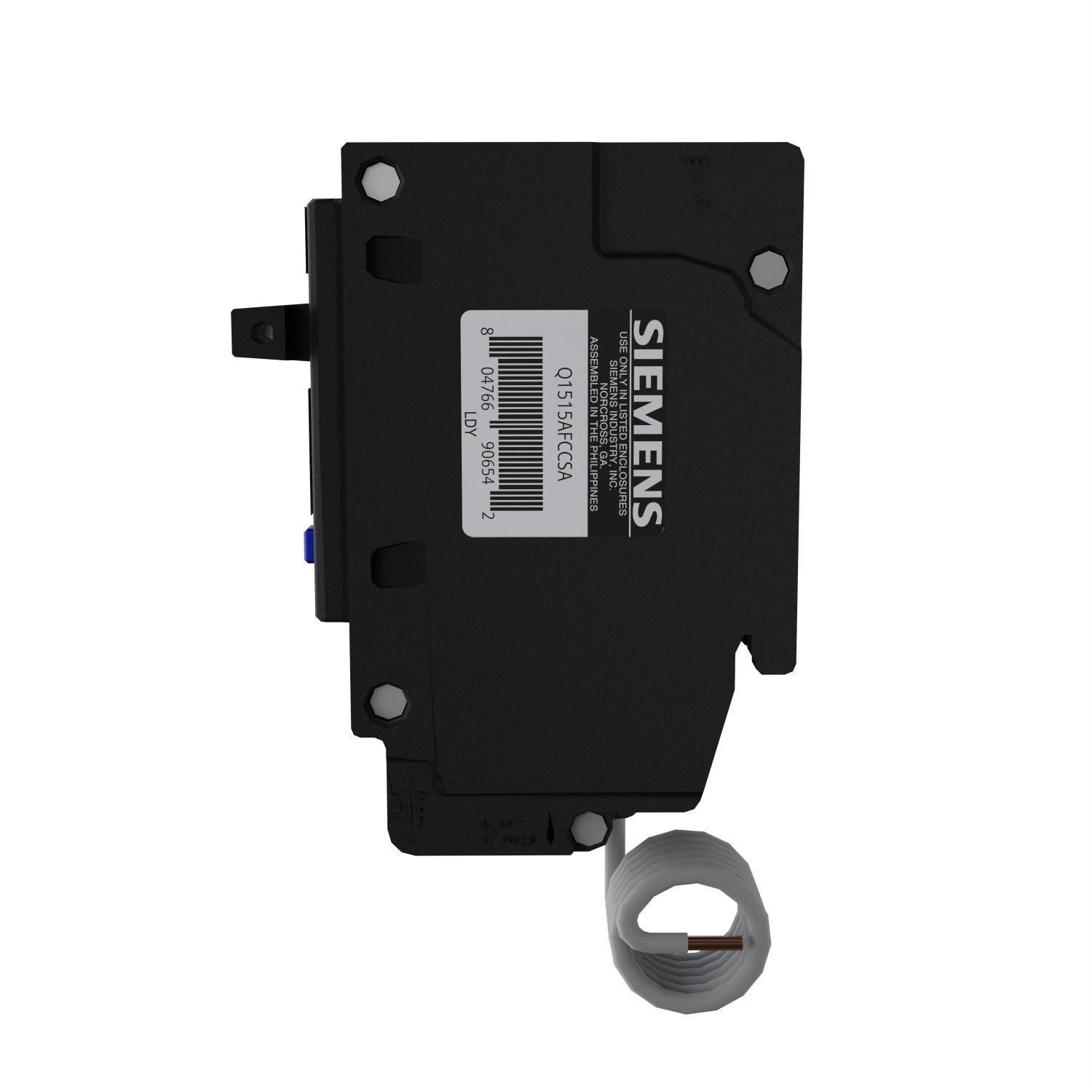

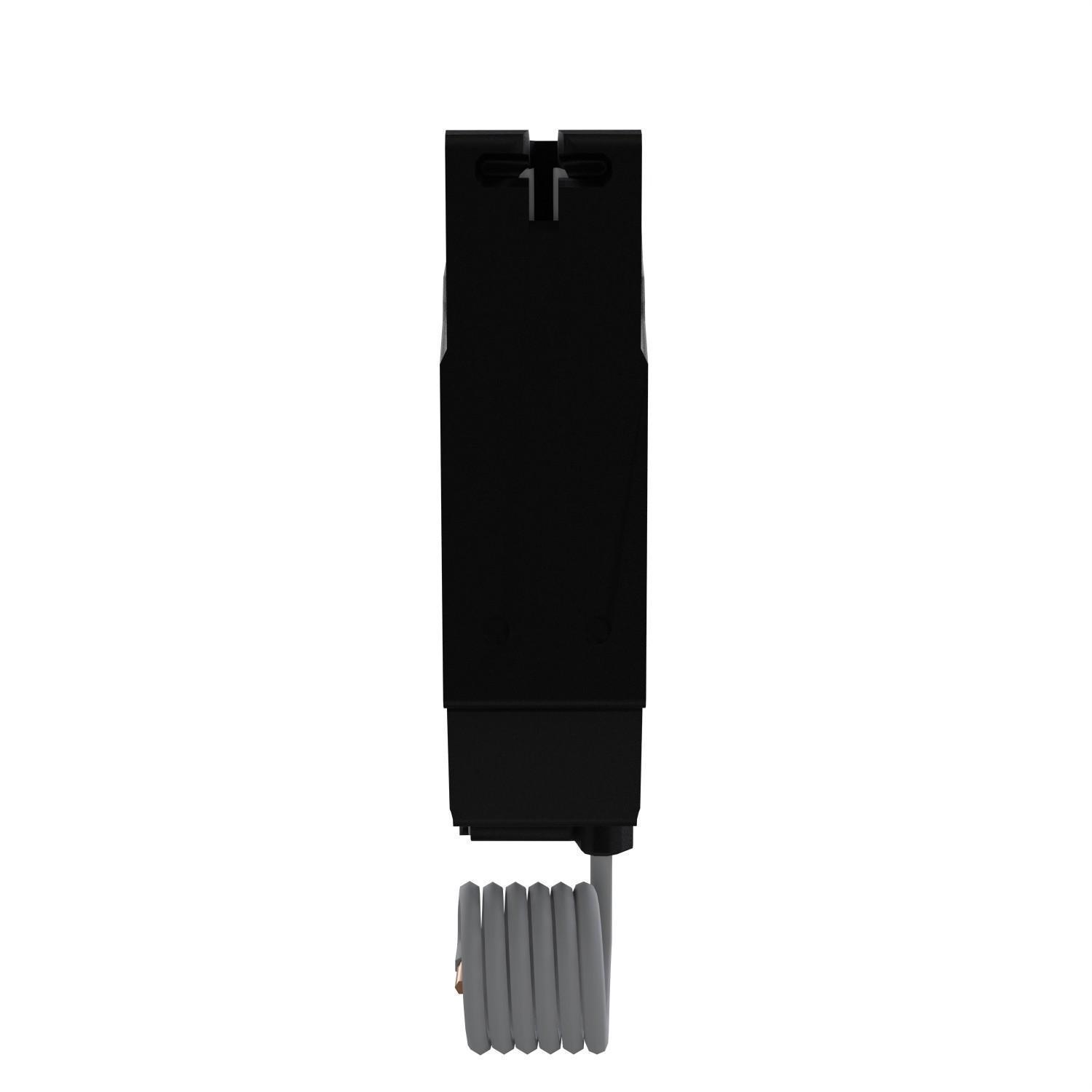

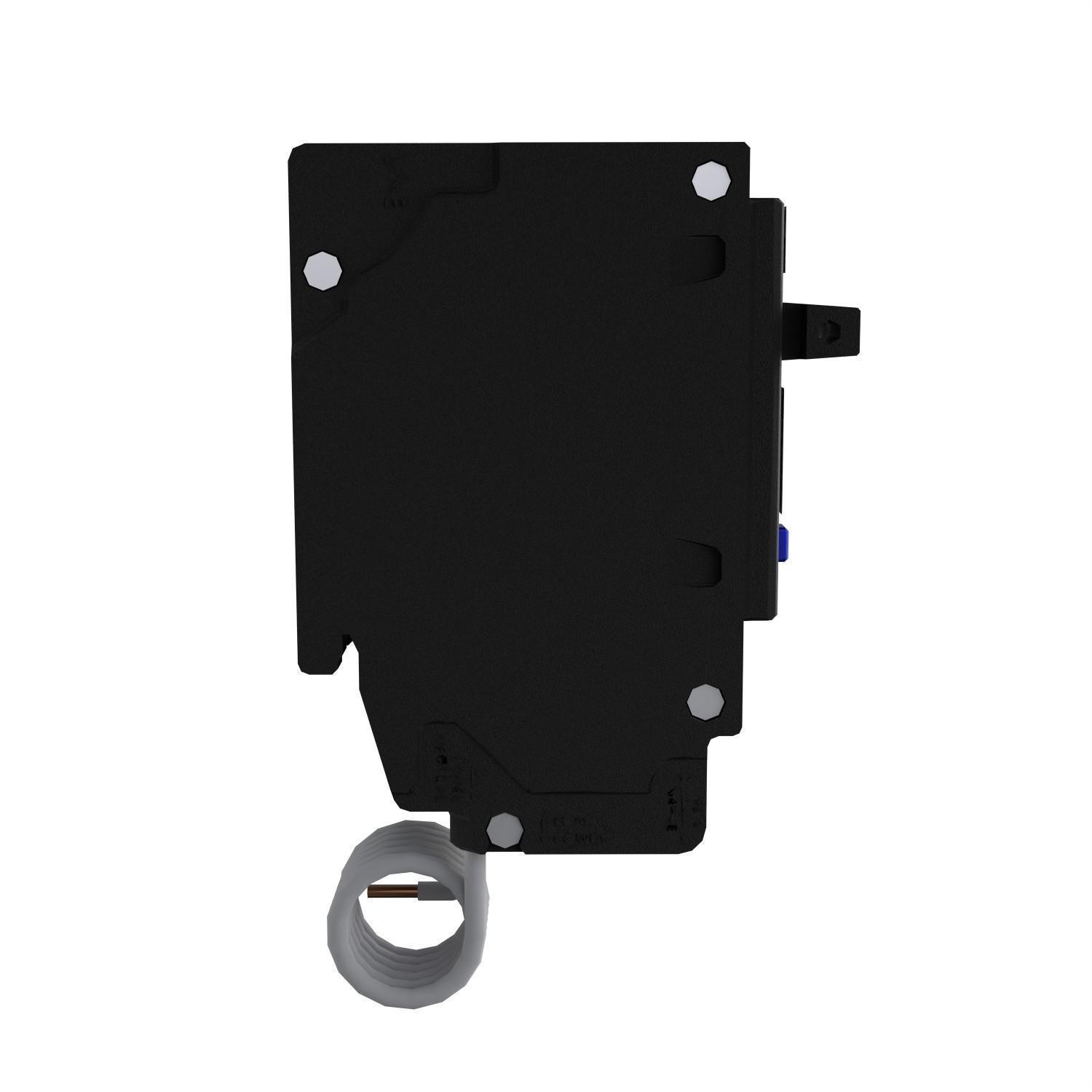

Q1515AFCCSA Low Voltage Twin Tandem Combination Arc Fault Circuit Breaker, Canada, 120 V, 15 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
| Branch Name | Available |
|---|
Sold as: Pack of EACH
Siemens Canada, Q1515AFCCSA, Arc Fault Circuit Breaker, Low Voltage Twin Tandem Combination, 120 V, 15 A, 10 kA Interrupt, QTA Frame, Thermal Magnetic Trip, 200 to 350 A Trip, 1 Pole, Pigtail Connection, Plug-On Mounting, 3.14 in L x 0.787 in W Dimensions
| Connection Type | : | Pigtail |
| Dimensions | : | 3.14 in L x 0.787 in W |
| Frame | : | QTA |
| Mounting Type | : | Plug-On |
| Trip Range | : | 200 to 350 A |
| Type | : | Low Voltage Twin Tandem Combination |
| Voltage Rating | : | 120 V |
| Amperage Rating | : | 15 A |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 1 |
| Trip Type | : | Thermal Magnetic |
